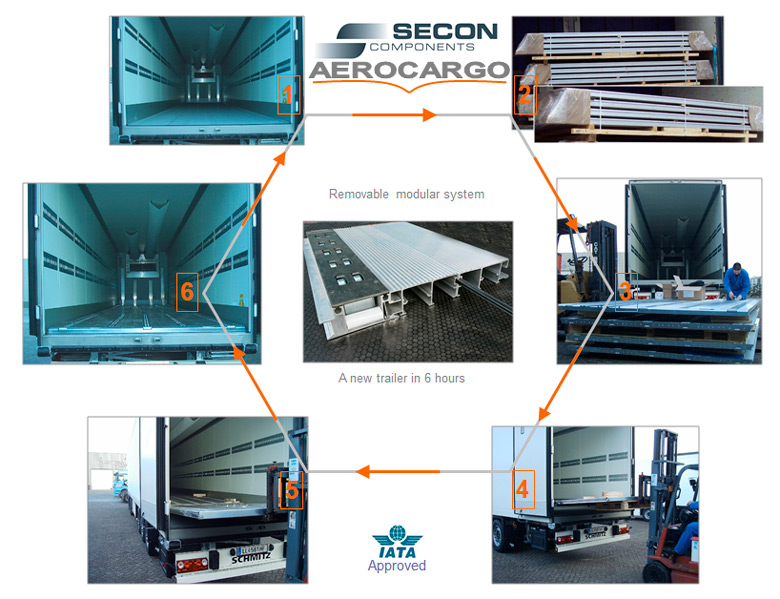

Removable modular system
| Top cover tracks in steel with a thickness of 5 mm. High resistance | |||
| Twin tracks Rollers: | 5 | ||
| Removable modules: | 4 | ||
| Dimensions: | 3 de 3.200 mm x 2.406 mm x 68,5 mm | 3 | |
| Distances between rollers centers: | 162 mm | ||
| Dimensions: | 1 de 3.800 mm x 2.406 mm x 68,5 mm | 1 | |
| Distances between rollers centers: | 80 mm | ||
| Total weight of the system: | 1.435 Kg | ||
| Capacity per linear meter of the system: | 2.750 Kg | ||
| Pneumatic system | |||
| 4 Independent Sections to raise or lower the twin rollers | |||
| Overpressure safety valve | |||
| Independent air tank | |||
| Fast acting valve | |||
| Security system | |||

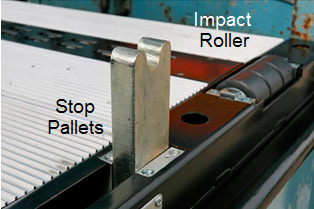

| 2 manual "Stop pallets" | |||
| 3 impact Rollers HD | |||

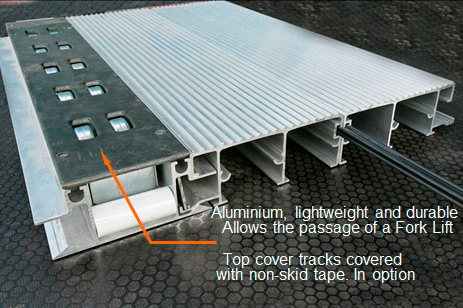

| OPTION: | Top cover tracks covered with non-skid tape | ||
| Special fixing for the Kingpin zone | |||
