LOADING AND UNLOADING OF TRUCKS AND TRAILERS
Autoloading without modification of the truck
The NALON N8 is a system for the automated loading and unloading of trucks and containers. The system is va lid for any truck with no need for modifications, and has a capacity of 150 pallets per hour.
The NALON N8 can work on multiple loading docks, thereby increasing productivity.

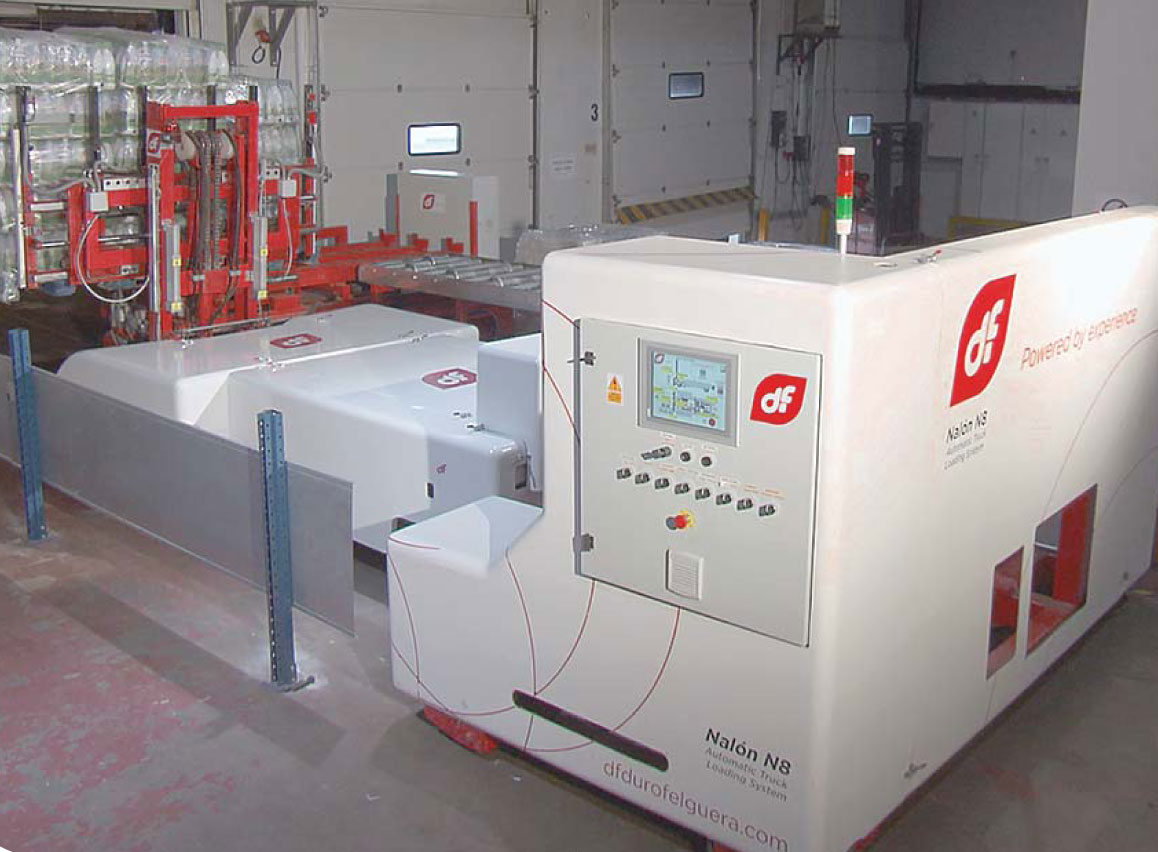

The NALON N8 Automated Truck Loading System basically consists of a transfer car which moves along the different docks, and a truck loading car which carries out the complete loading sequence at the dock selected.

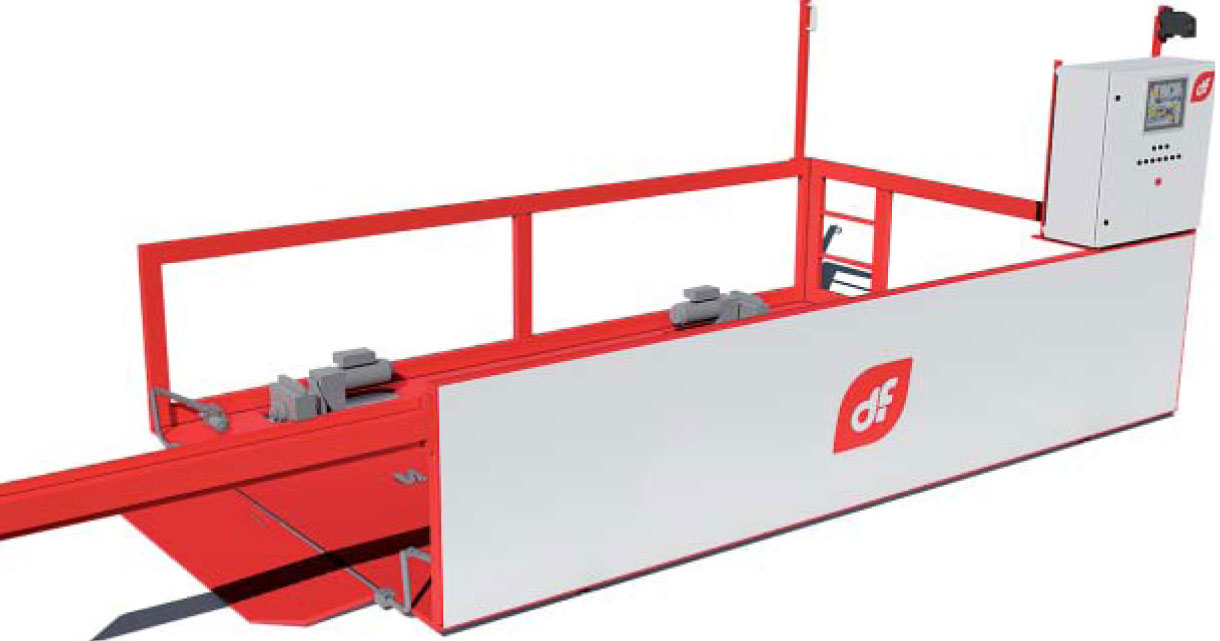

NALON N8TC
Transfer Car
The car's mission is to position the truck loading car in the desired loading dock, aligned with the centre axis of the truck.

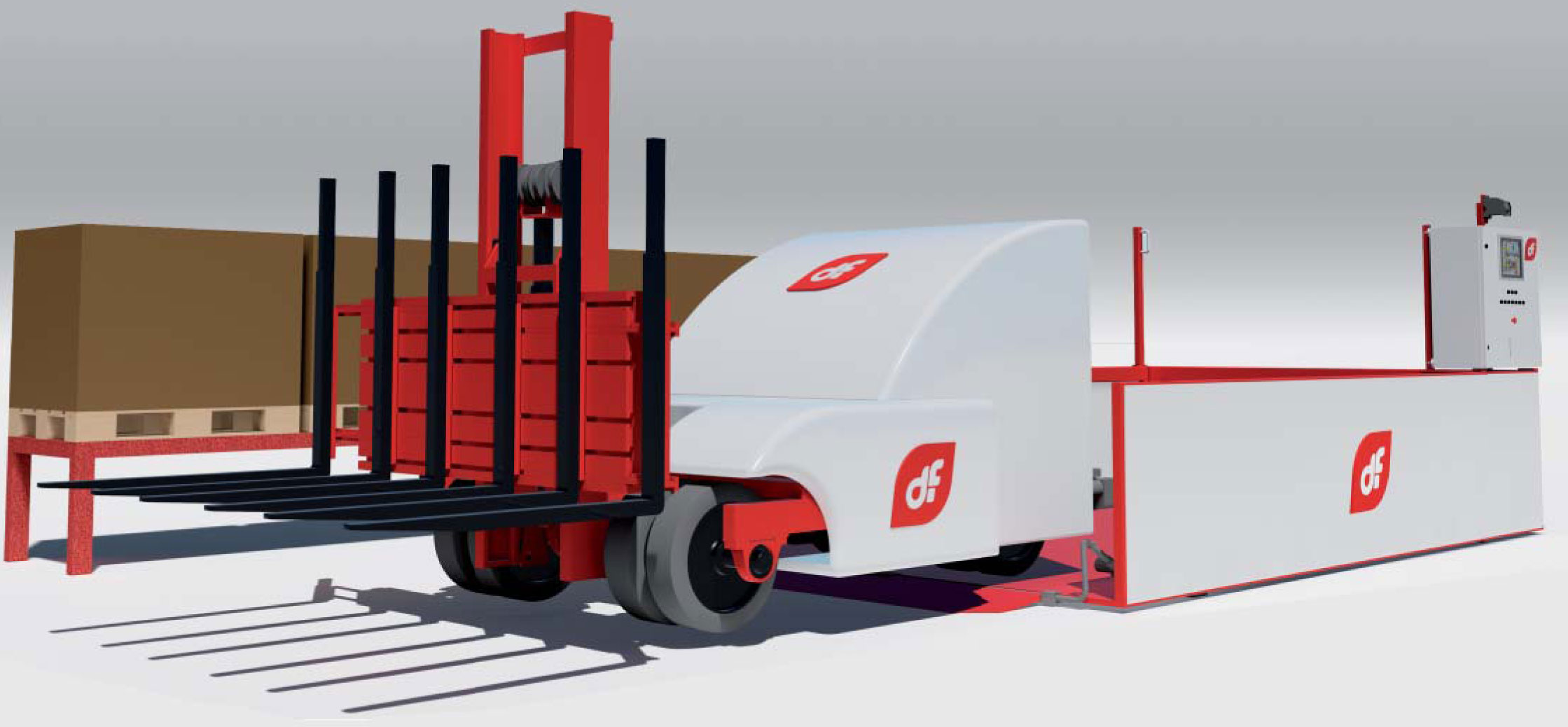

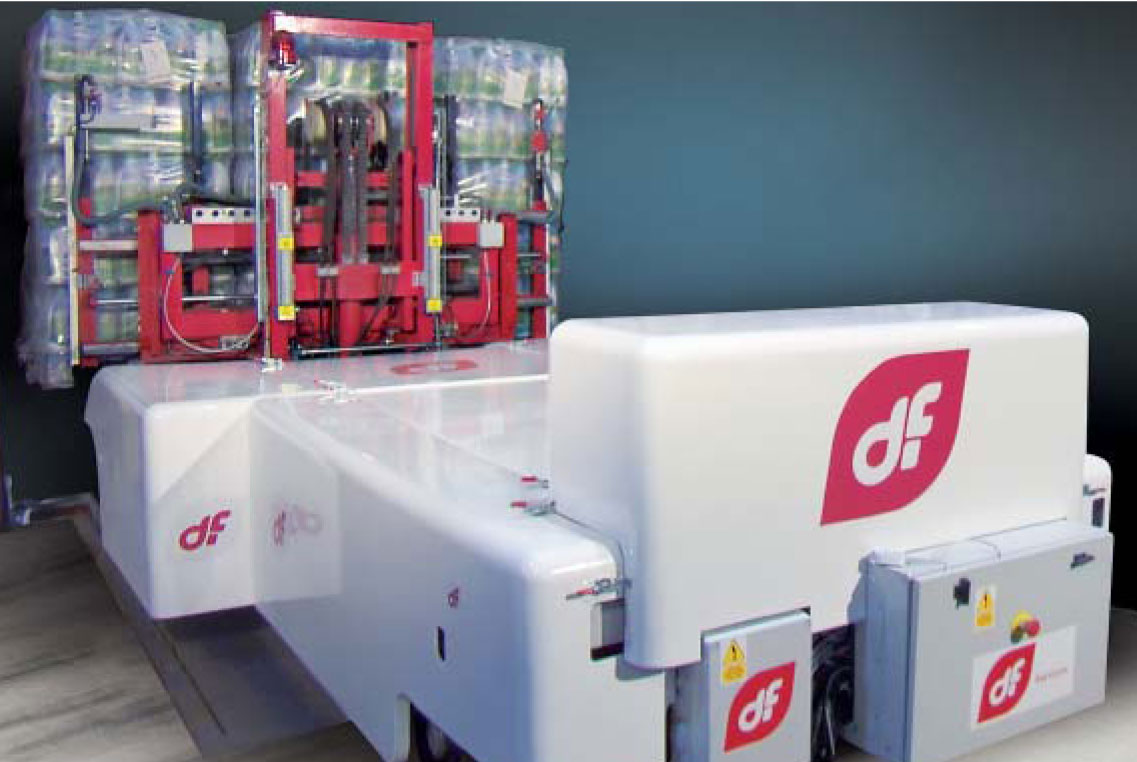

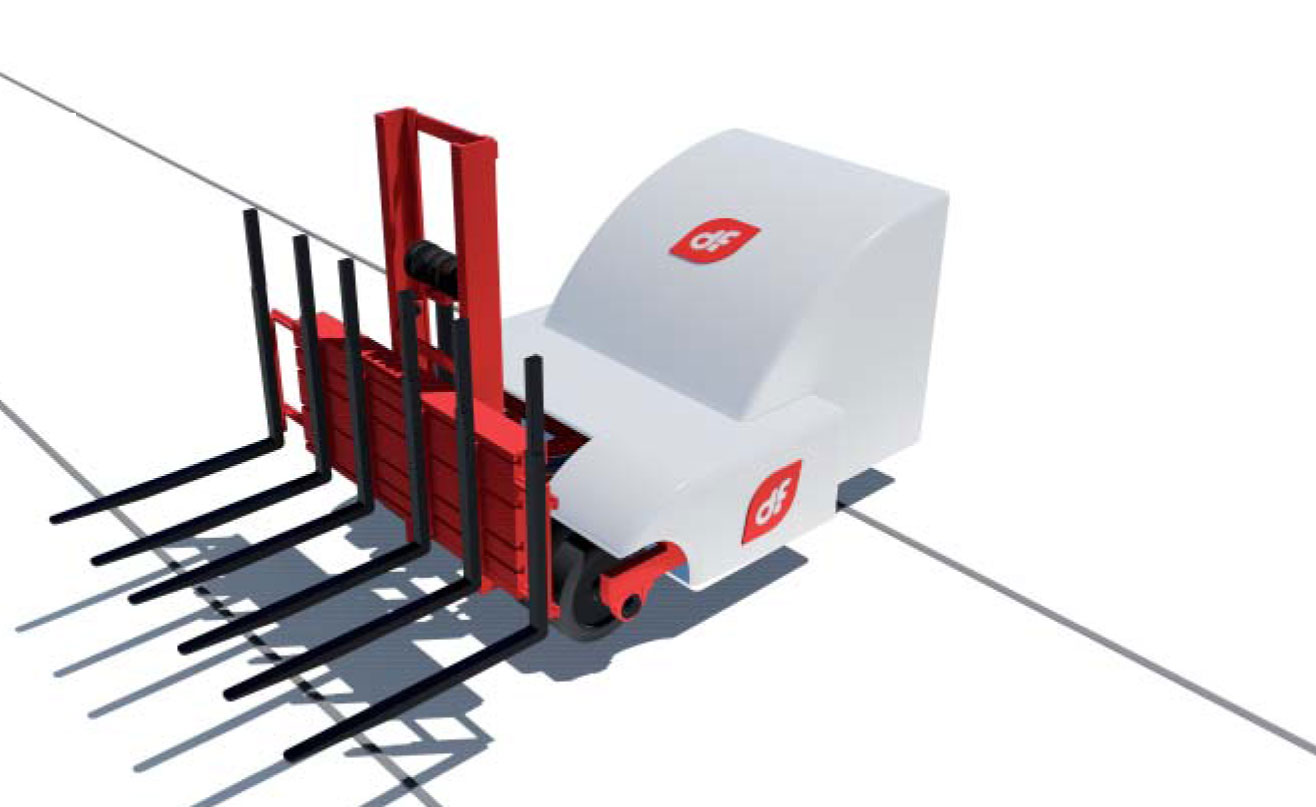

NALON N8TLC
Truck Loading Car
(Similar to a fork lift truck)
Designed to carry out the complete truck loading and unloading sequence.

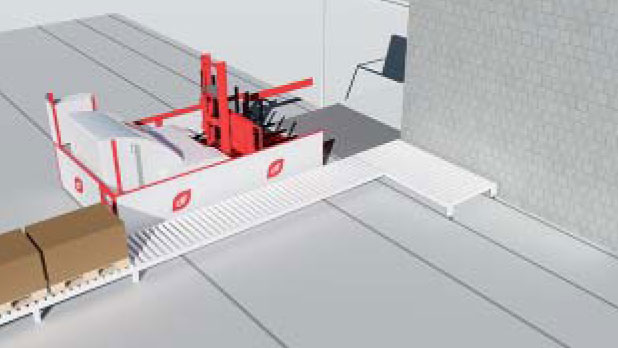

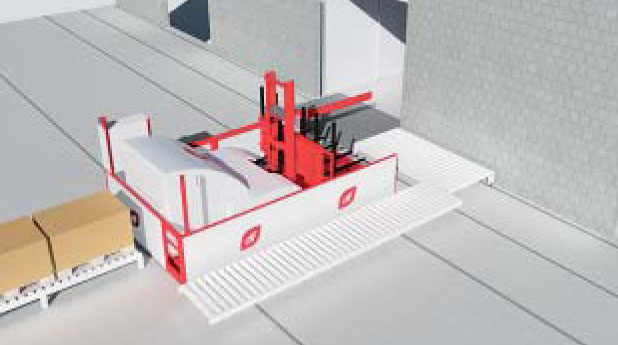

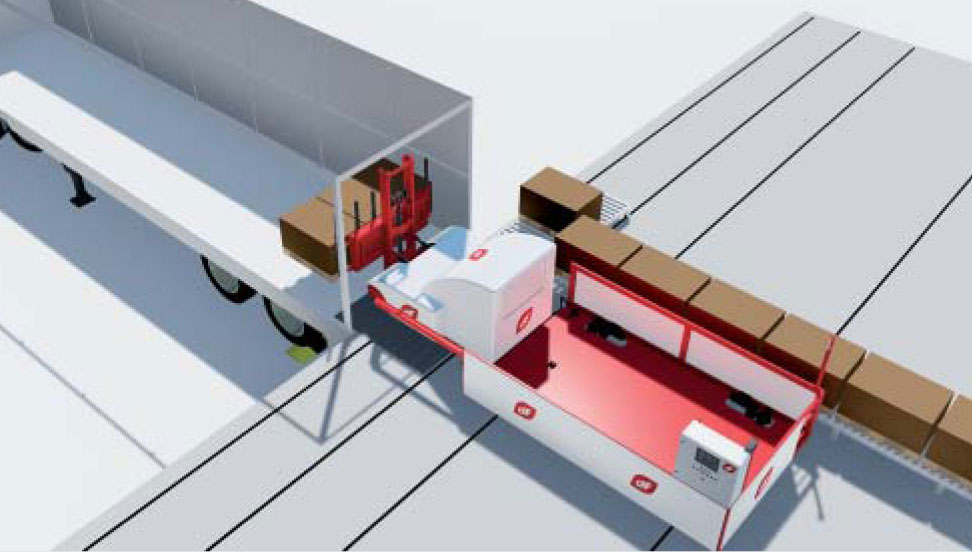

Positioning on the loading dock
 |
 |
 |
| Moving towards selected loading dock | Positioning on tne selected loading dock | Alignment with the central axis of the truck |

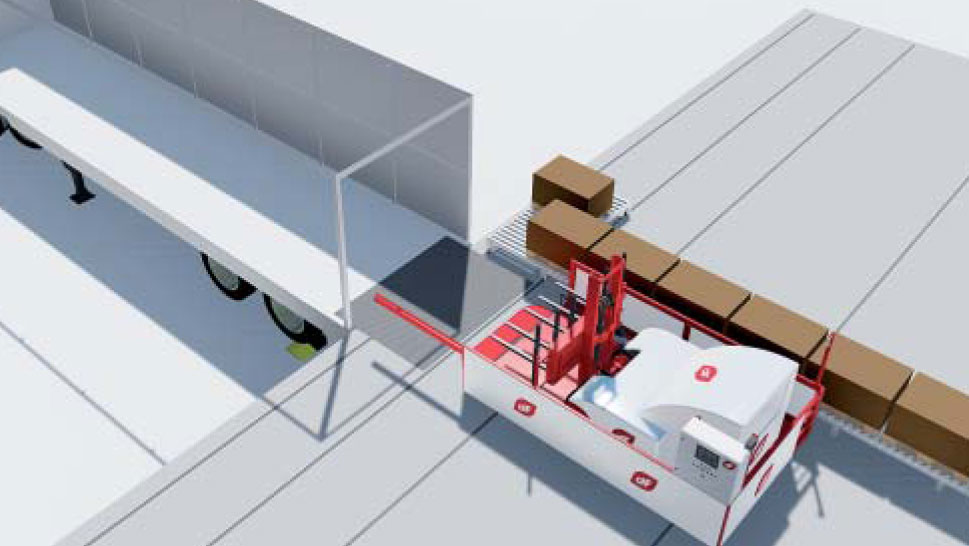

Loadlng cycle
 |
 |

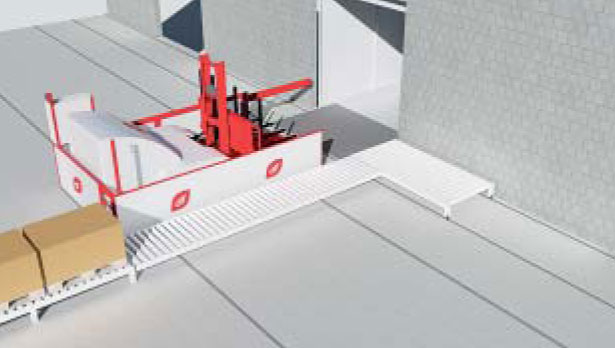

| DAP loading | Feeding from DAP to the NALON N8 |
 |
 |

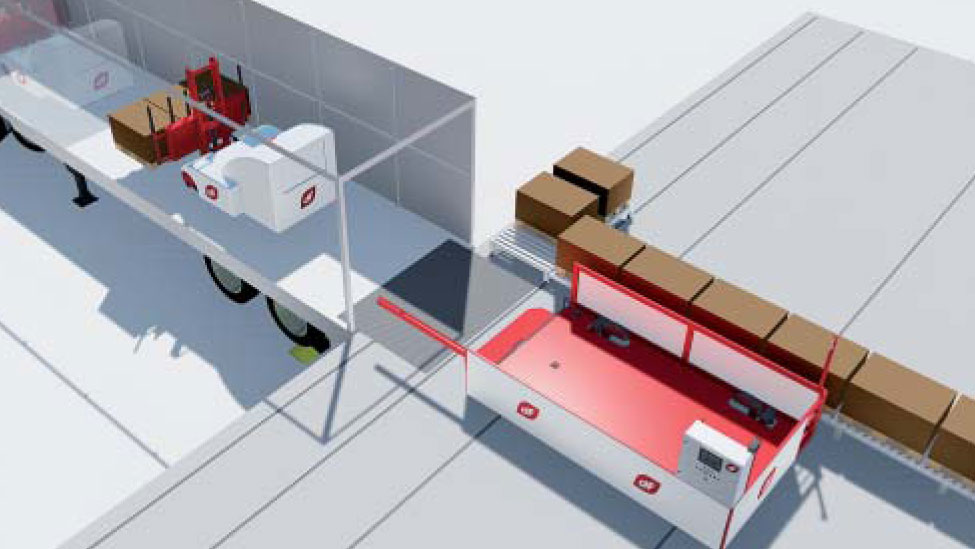

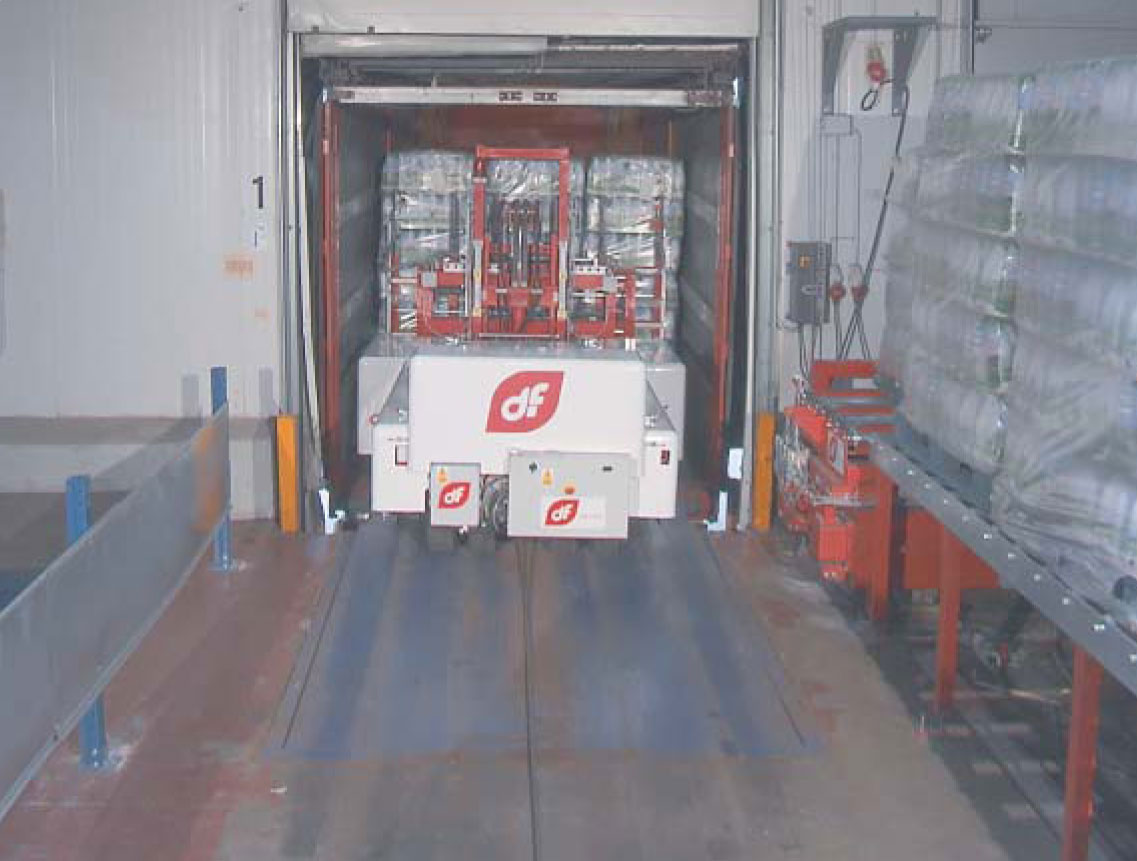

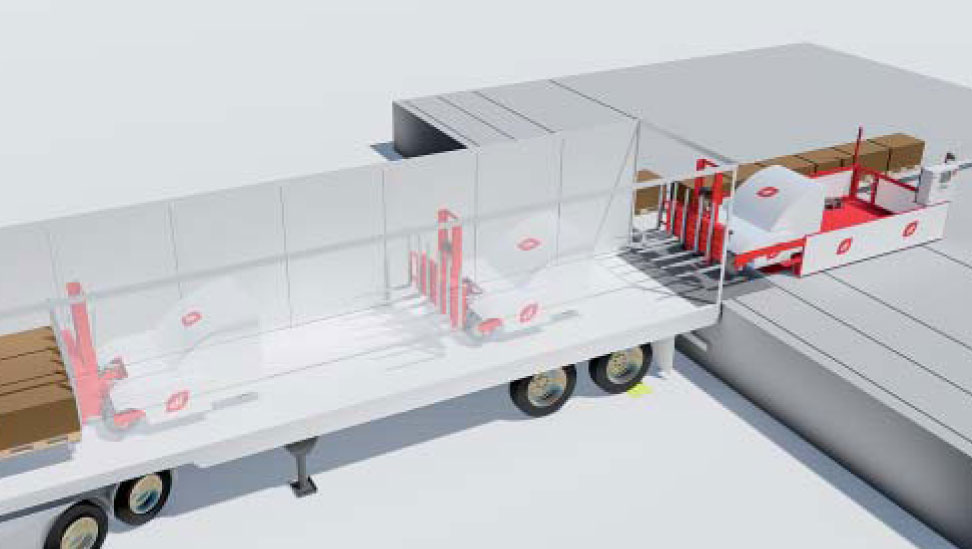

| Transporting the load onto the truck | Unloading onto the floor and removing the NALON N8 from inside the truck. |
Main features of the system
- Works with any kind of truck with no need for modifications.
- capable of loading trucks parked in parallel docks - up to 5 loading docks simultaneously (expandable).
- Loading/Unloading cycle over 150 pallets/hour (55 cycles NALON N8 TLC)
- Maximum load weight 3,000 kg (6,613 lb) each loading cycle. (Expandable to 4,500 kg (9,920 lb)).
- va lid for any pallet and mosaic format that fits the trailer dimensions, e.g. 3 Euro pallets or 2 American pallets.
- Valid for vertically stacked pallets
- Possible to define the loading mosaic manually or by integration with other information systems (SGA/WMS)
- Available 24/7 (> 99% availability)
- Laser guidance system in truck box with no lateral contact.
- Truck driver assist system for parking at dock (optional).
General design criteria
- Long-life and low·maintenance design.
- High quality and reliable components.
- Top·brand OEM components.
- lnteractive and user-friendly HMI.
- Equipment prepared for IP dust protection code 65.
Benefits
- NALON N8 can load more pallets per minute than any other conventional system.
- No modifications are reQuired for the truck.
- The loading process is safer than with manual or semi-automatic processes.
- Signiticant reduction ot logistical operating costs.
- Reduction of shipping area and therefore of costs related to infrastructure investment.
- Complete integration in smart warehouse.
- Avoids the use of fossil tuels and annoying battery maintenance.
- lmproves transport company efficiency (less waiting time) by increasing supply chain added value.
- Avoids human mistakes of loading the wrong items and the cost of claims and returned goods.
- The NALON N8 can be easily removed from the dock in case of breakdown. leaving the area free to contlnue wlth manual loading.
 |
|

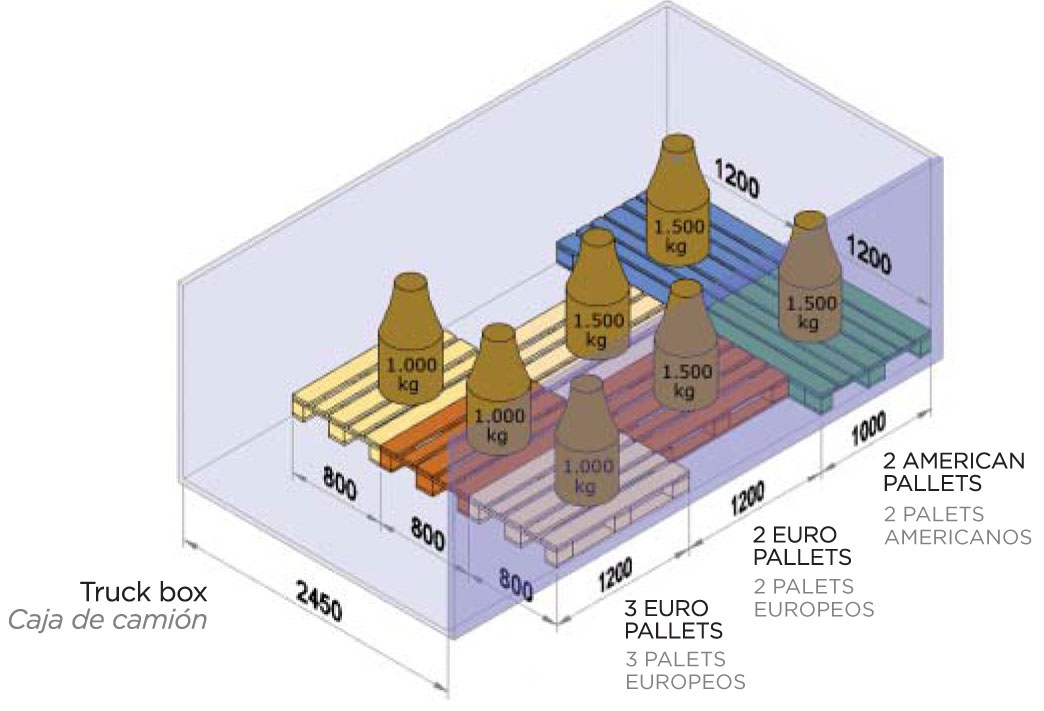

| Truck box |
|
 |
|

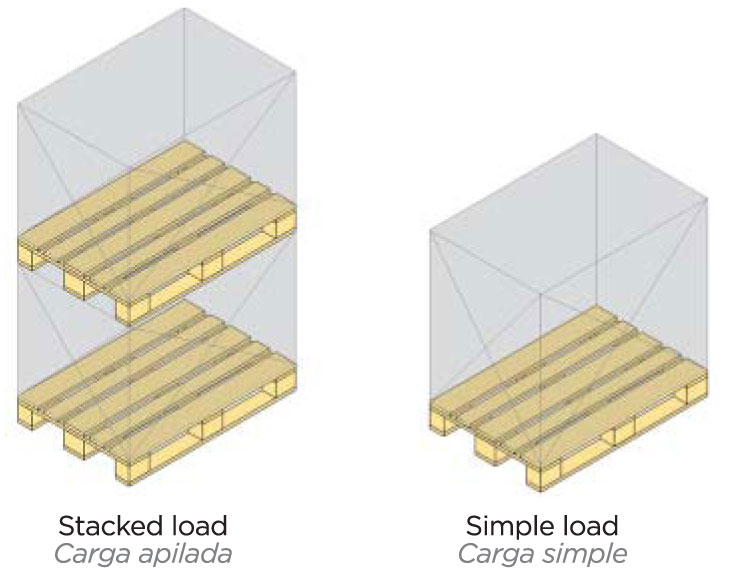

| Stacked load | Simple load |
Safety
|
 |
Customer service
|
 |
Technical information
| Load | ||
| System load capacity | 150 pallets/h | 5 trucks/h |
| Truck loading time (30 pallets) | 12 min | |
| Maximum capacity of Truck Loading Car (TLC) | 3000Kg /cycle | 3 pallets x 1000 kg 2 pallets x 1500 kg |
| Truck Loading Car (TLC) | ||
| Weight | 4000 kg | 7716 lb |
| Dimensions (LxWxh) | 5,35m x 21m x 23m 17ft 6 5/8 in x 6ft 43/64 in x 7ft 6 35/54 in |
|
| Longitudinal reach | 16 m | 52 ft 5 58/64 in |
| Fork positioning vertical reach | 1,3m | 4 ft 3 3/16 in |
| Forks positioning lateral reach | ± 125 mm | ± 4 59/64 in |
| Speed (empty) | 1 m/s | 3,8 ft/s |
| Speed (loaded) | 0,50 m/s2 | 0,98 ft/s2 |
| Acceleration (empty) | 0,30 m/s2 | 0,98 ft/s2 |
| Lifting acceleration | 0,23 m/s2 | 0,75 ft/s2 |
| Transfer Car TC | ||
| Weight | 750 kg | 1659 lb |
| Dimensions (LxWxH) | 1,9 m x 3,2 m x 1,9 m 6ft 2 51/64 in x 10ft 5 53/64 in x 6ft 2 61/64 in |
|
| Speed | 0,33 m/s (Expandable) | 1,08 ft/s |
| Acceleration | 0,16 m/s2 | 0,52 ft/s2 |
| Truck requeriments | ||
| Minimum width of the truck box | 2100 mm | 6ft 10 43/64 in |
| Maximum length of the truck box | 13500 mm | 44ft 3 1/2 in |
| Work area temperature | 00C a 450C | 320F a 1130F |
