Waste Management Equipment

WASTE TRANSPORT SYSTEMS

WASTE TRANSPORT

Bodywork welded to lower longitudinal body beams.

The Cargo Floor system consists of 21 alu profiles supported by double-T crossbeams at a distance of 350mm.

Laterals are constructed by alu body planks from 300 up till 600 mm wide, welded between upper and lower profiles.

Chassis structure made of double -T profiles which match with longitudinal lower profiles.

Body equipped with following accessories.

Toolbox, fire-extinguisher box, front ladder, mudflaps, rear ladder and rubber buffers.

Hydraulic rear door with 2 hydraulic cylinders and security valves.

Rear door equipped with 4 safety lockings and rubber profile for full watertightness.

Optional: Independent motor in order to operate independently from tractor.

Special leakproof Cargo Floor system.

This system consists of 11 to 15 alu profiles of 10 to 18mm thickness.

These profiles slide over polyethylene strips of 10mm thickness and high resistance:

a)Sliding roof with opening gap of 3 meters which enables body to be filled from above.

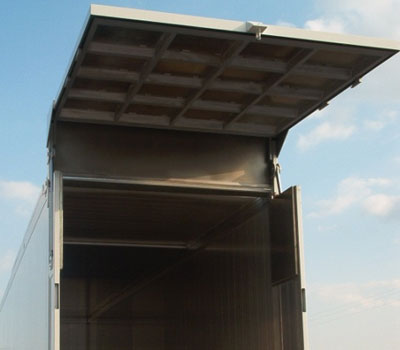

b) Roof with hydraulic mesh type flaps rotating 270º.







Modelo
Longitud
Altura Interior
Volumen
• SCLP 87
13.600 mm.
2.550 mm.
87 m3.
• SCLP 92
13.600 mm.
2.720 mm.
92 m3.
