Bodywork welded to lower longitudinal body beams.

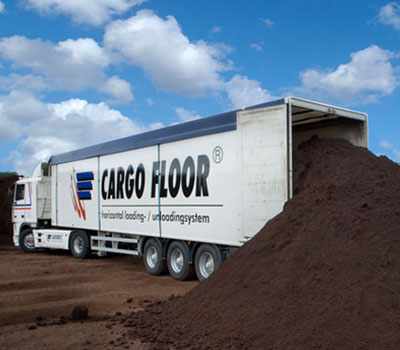

The Cargo Floor system consists of 21 alu profiles supported by double-T crossbeams at a distance of 350mm.
Chassis structure made of double -T profiles which match with longitudinal lower profiles.
Side door: optional
Side doors could be installed with opening space until 6000mm. Interior and exterior finishings are totally flat.
Chassis constructed with double-T alu profile which longitudinal lower beams.
Rear door constructed of 2 alu doors with 4 vertical loadings.
Optional: moving interior board of alu profiles and lower part of tarpaulin which slides with the cargo toward the rear of the trailer, sweeping the trailer clean.
Modelo |
Longitud |
Altura Interior |
Volumen |
• SCMV 60 |
13.600 mm. |
1.800 mm. |
60 m3. |
• SCMV 87 |
13.600 mm. |
2.550 mm. |
87 m3. |
• SCMV 90 |
13.600 mm. |
2.700 mm. |
90 m3. |
• SCMV 96 |
13.600 mm. |
2.850 mm. |
96 m3. |
